Victron SmartSolar MPPT 150/70-Tr

R5845,47

The Victron BlueSolar MPPT 150/70 is a high-efficiency solar charge controller for 12 V, 24 V, 36 V, or 48 V battery systems. It can handle up to 70 A charge current and 150 V PV input, with a peak efficiency of 98 %. Features include multi-stage adaptive charging, temperature compensation, low self-consumption, and VE.Direct communication for monitoring and configuration. Compact, robust, and suitable for small- to medium-sized solar installations.

Category:

Description

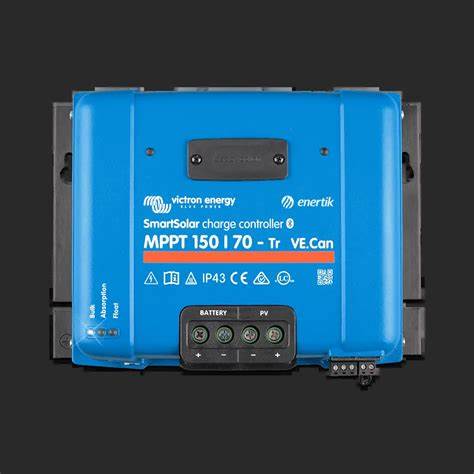

The Victron SmartSolar MPPT 150/70-Tr VE.Can is a high-efficiency solar charge controller designed for 12V, 24V, or 48V battery systems. It’s suitable for medium to large solar installations that require reliable and efficient energy management.

🔧 Key Features

  • MPPT Technology: Rapid Maximum Power Point Tracking to maximise solar power output.

  • Battery Voltage Detection: Automatically detects 12V, 24V, or 48V systems.

  • PV Input: Maximum short-circuit current of 50A and maximum open-circuit voltage of 150V.

  • Bluetooth Monitoring: Wireless setup and monitoring through the VictronConnect app.

  • VE.Can & VE.Direct: Communication with other Victron devices like the Color Control GX.

  • Optional Smart Battery Sense: More accurate voltage and temperature readings.

  • Programmable Relay: Can trigger alarms or actions based on events.

  • Safety Certified: Meets IEC/EN 62109-1 and other international standards.

📊 Technical Specs

Battery Voltage Nominal PV Power Max PV Power Max PV Short-Circuit Current Max PV Open-Circuit Voltage
12V 1000W 1000W 50A 150V
24V 2000W 2000W 50A 150V
48V 4000W 4000W 50A 150V

  • Model Number: SCC115070411

  • Use Case: Ideal for medium to large solar systems requiring efficient battery charging.
